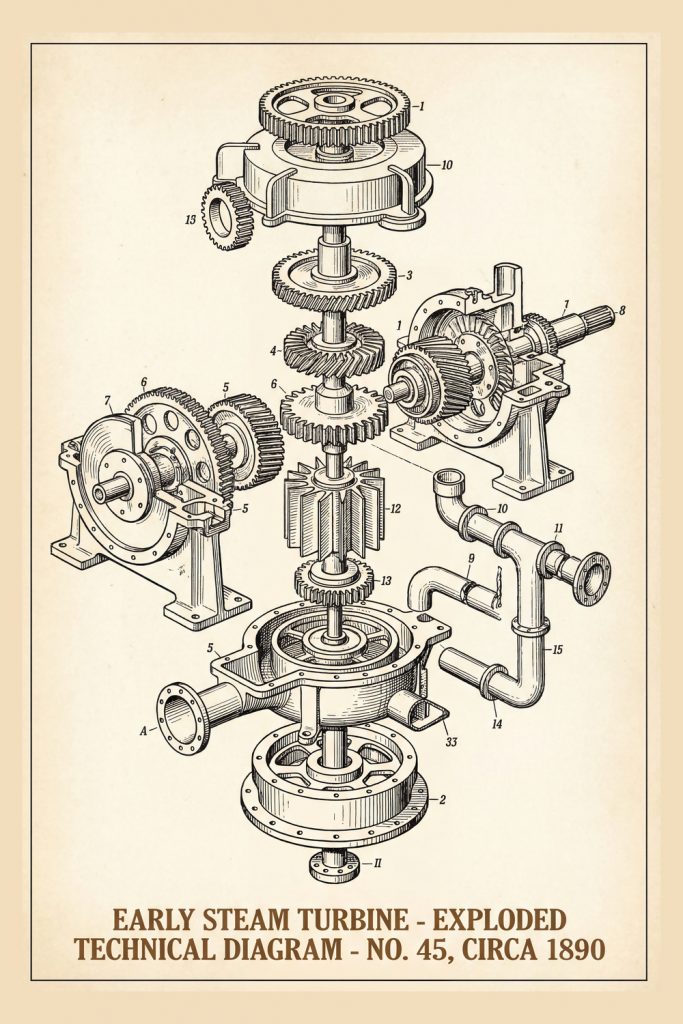

Before electricity lit our cities and factories hummed through the night, the world ran on steam, steel, and ingenious engineering. This exploded technical diagram of an early steam turbine (No. 45, circa 1890) captures that moment in history — when human innovation was turning pressure and heat into rotational power, pushing industry into a new age.
This diagram isn’t just a picture.
It’s a mechanical anatomy lesson, a snapshot of invention.
Each numbered component reveals a piece of the machine’s story:
- Gears, shafts, bearings, and turbines working in precise orchestration
- Early mechanical coupling systems transferring force to rotation
- A cooling flow and pressure system designed for maximum efficiency
- Engineering designed first by pencil, not processor
In an era when heavy industry was built by hand and blueprint, drawings like this were the lifeblood of invention — technical roadmaps that allowed machinists, millwrights, and steam plant operators to replicate and maintain equipment that powered mills, ships, and power stations around the world.
